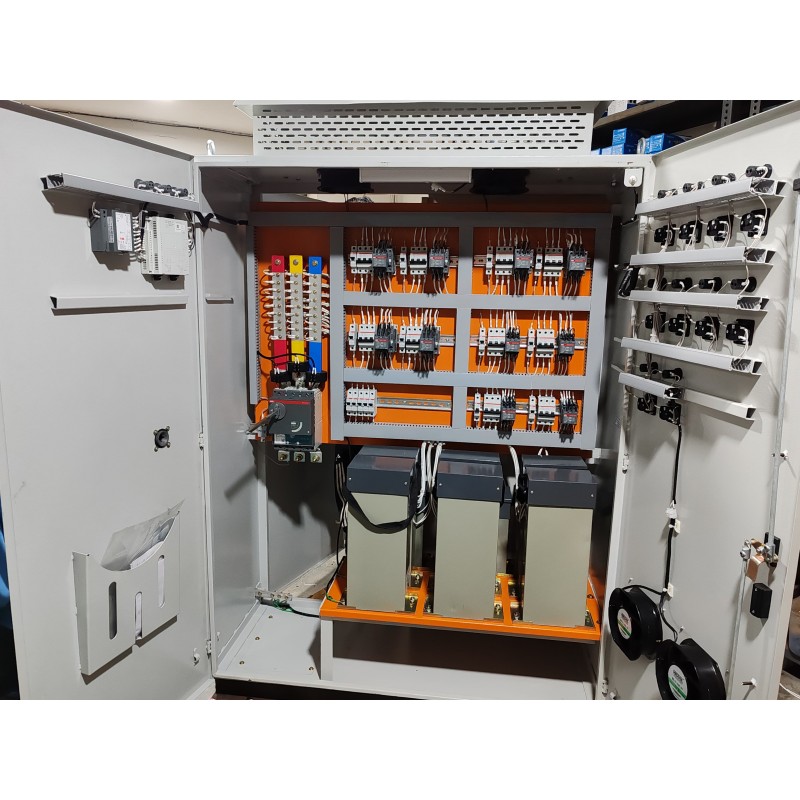

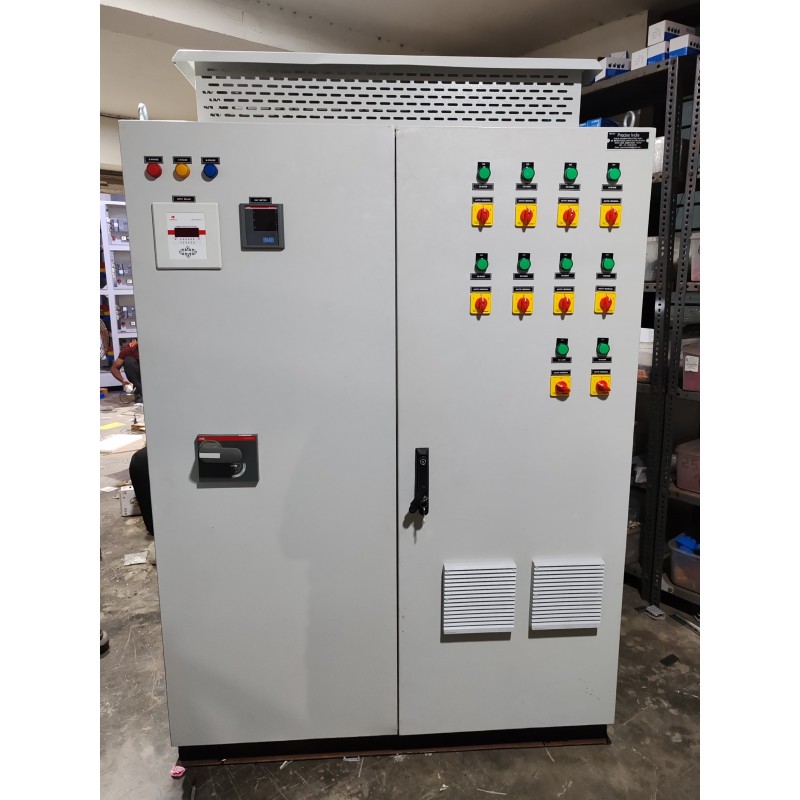

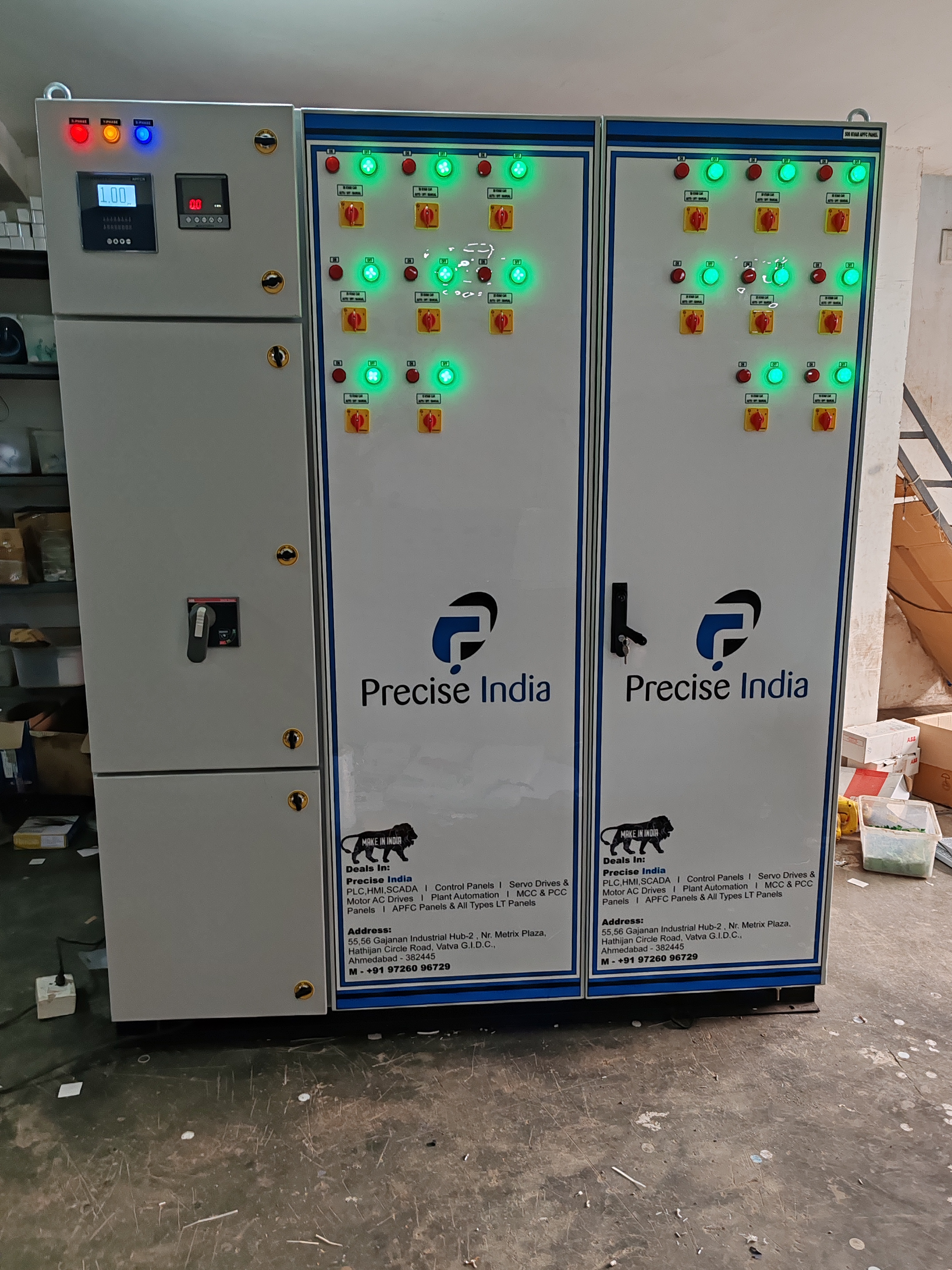

APFC Panel

Precise India Is Conspicuous APFC Panel Refer As Automatic Power Factor Control Panel Manufacturer, Supplier Based In Ahmedabad, Gujarat, India. APFC Panel Is Essentially Used To Improve Power Factor Which Is A Measure Of Electrical Systems Efficiency. The Ratio Of Productive Power (kW) To Total Power (kVA) Is Called The Power Factor (PF = KW / KVA). It Is A Measure Of The Systems Electrical Efficiency In An Alternating Current Circuit And Is Represented As A % Or A Decimal.

APFC Panels Can Meritoriously & More Prominently Automatically Undertake The Quickly Changing & Scattered Loads Along With Retention Of High Power Factory. Precise India Manufacture The Customized APFC Panel Which Are Available In Different Current Ratings To Accommodate To Various Diverse Applications.

Feature Of APFC Panel:

Our Ranges Of APFC Panel Are Inbuilt With Following Outstanding Salient Features

  • State Of Art With Impeccable Ergonomic Finish
  • Impart High Performance & Long Functioning Life
  • Manufactured Using High Grade Stainless Steel Material.
  • Electrical Circuits Are Equipped With Independent Fuses
  • Equipped With Capacitors With Series Reactors For Minimizing Harmonic Current Which May Alter System Voltage & Current.
  • Cost-effective With Quicker Remuneration Periods.
  • Capability To Sustain A Constant High Power Factor.
  • Eradicates Low Power Factor Consequences Levied By Earth Bus.
  • Diminishes KVA Demand Charges.
  • Mends The Efficiency Of System By Reducing Losses.
  • Averts Leading Power Factor In The Installation During Low Load Condition

Technical Specification:

Below Is The Typical Technical Specification Of Our APFC Panel. Specification Can Be Alter As Per The Customer Requirement



Rated Voltage

400 / 415 / 440 / 690 V

Rated Frequency

50 / 60 Hz

Rated Out Put

50 - 2000 KVAr


Delta / Star Floating / Star Grounding

Number Of Steps


Step Distribution

As Per User Requirement

Series Reactor

5.6%, 7%, 14%

Switching Device

Thyristor / Capacitor Duty Contactor

Panel Type

Standard / Modular / Compartmentalized / Un Compartmentalized

Branch Protection

HRC Fuse / Semiconductor Fuse / SFU / MCCB


Resin Filled / Gas Filled / APP.


Over Voltage / Under Voltage / Short Circuit / Earth Fault / Over Temperature

Measuring CT

1 Or 3


Application Of APFC Panels:

Precise India Has Successfully Put The APFC Panel In Use In Following Industries / Applications

  • Windmills
  • Monitoring Current Harmonics
  • Process Controllers
  • Micro Processors
  • LT & HT Factories
  • Electrical Installations
  • Line Voltage Analysis
