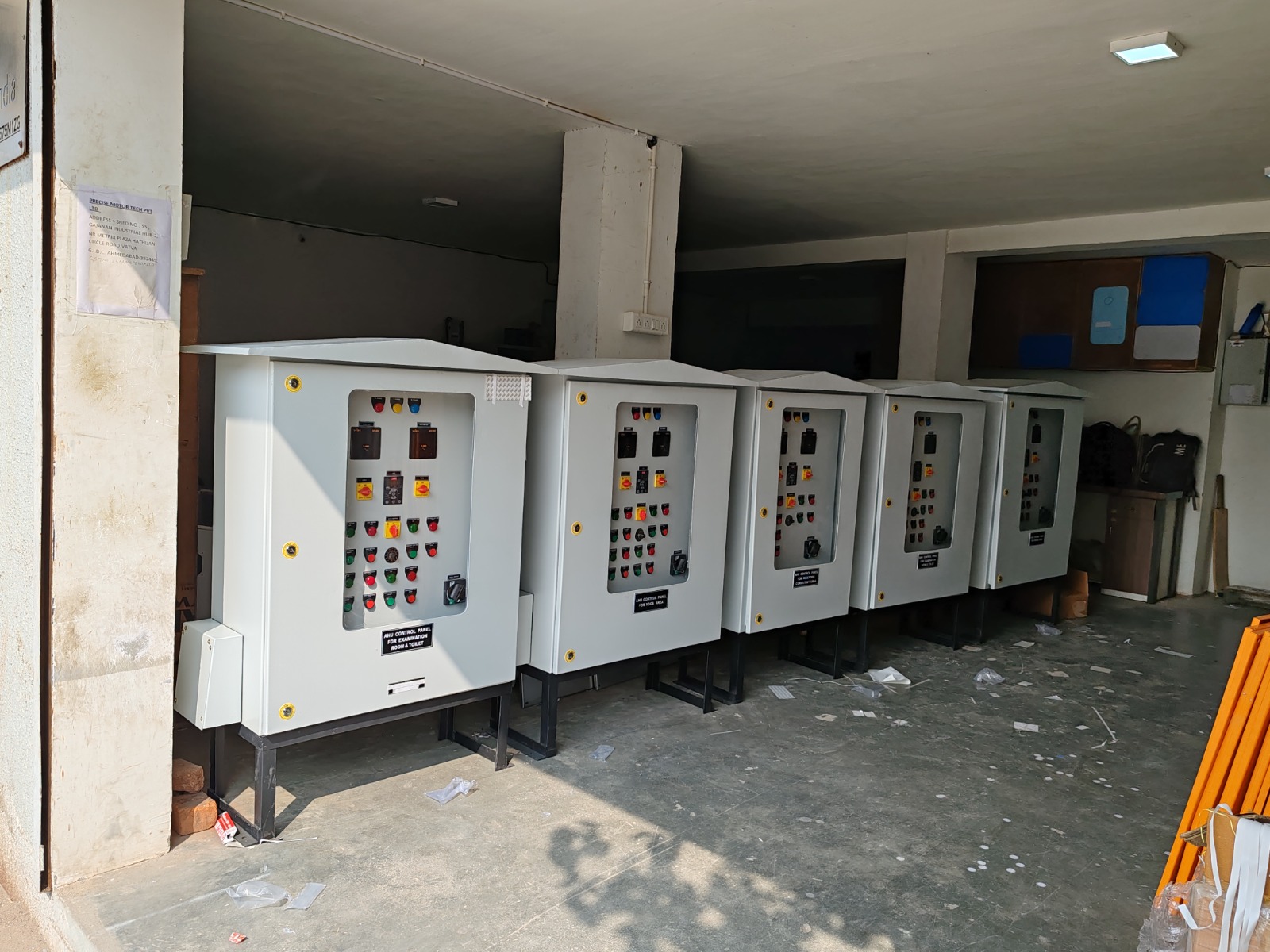

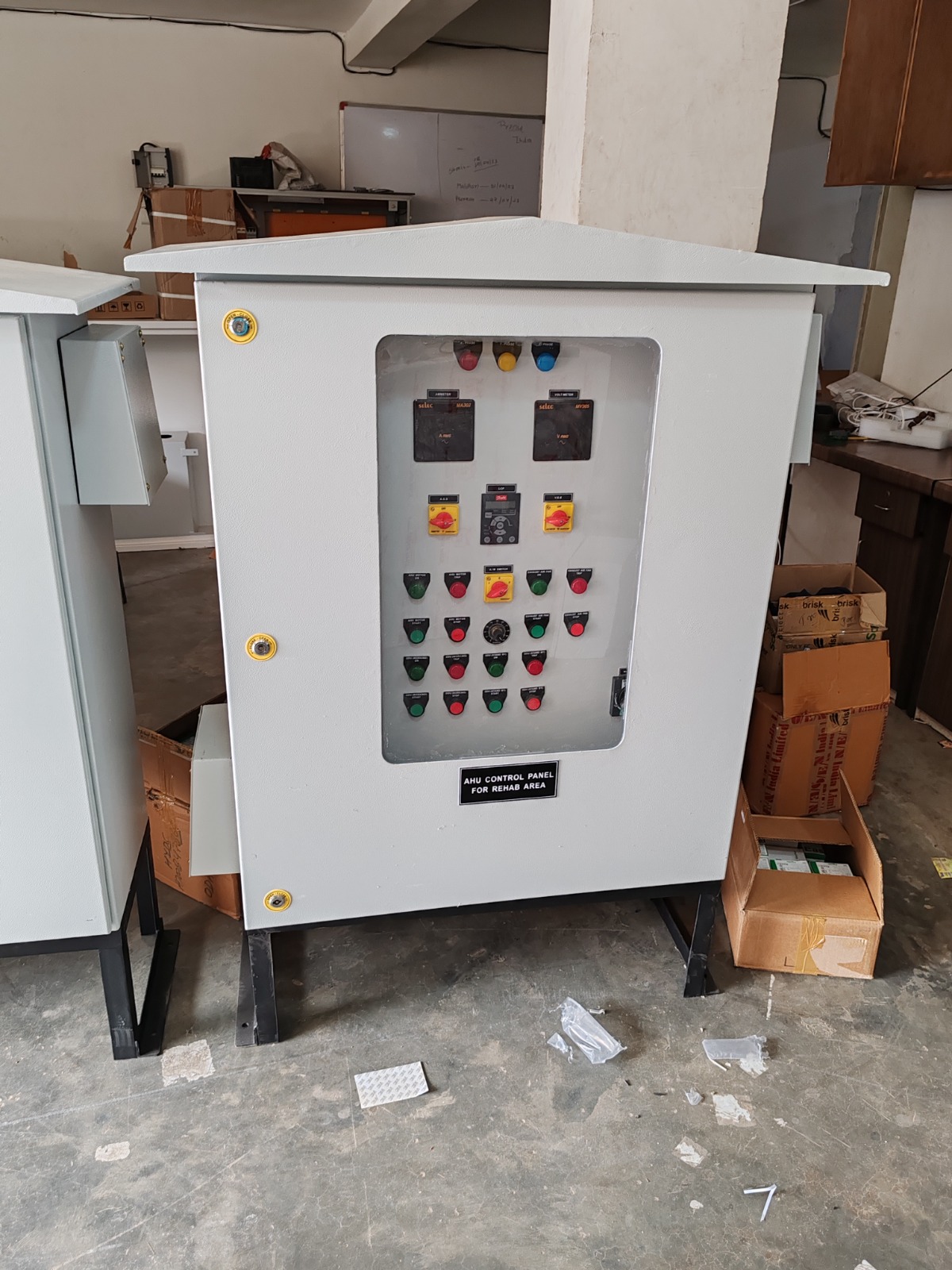

An HVAC Control Panel Is An electrical And Automation System Designed To Control The Operation Of HVAC Equipment Like Air Handling Units (AHUs), Chillers, Compressors, Fans, Pumps, Dampers, And Thermostats. It Ensures efficient Climate Control, Energy Savings, And Safe Operation Of HVAC Systems.
Key Functions:
-
Control Start/stop Of HVAC Equipment (fans, Compressors, Chillers)
-
Regulate Temperature, Humidity, And Air Quality
-
Monitor System Health And Safety Alarms (overload, High Pressure, Etc.)
-
Interface With Sensors (temperature, Pressure, Airflow)
-
Integrate With Building Management Systems (BMS) For Automation And Monitoring

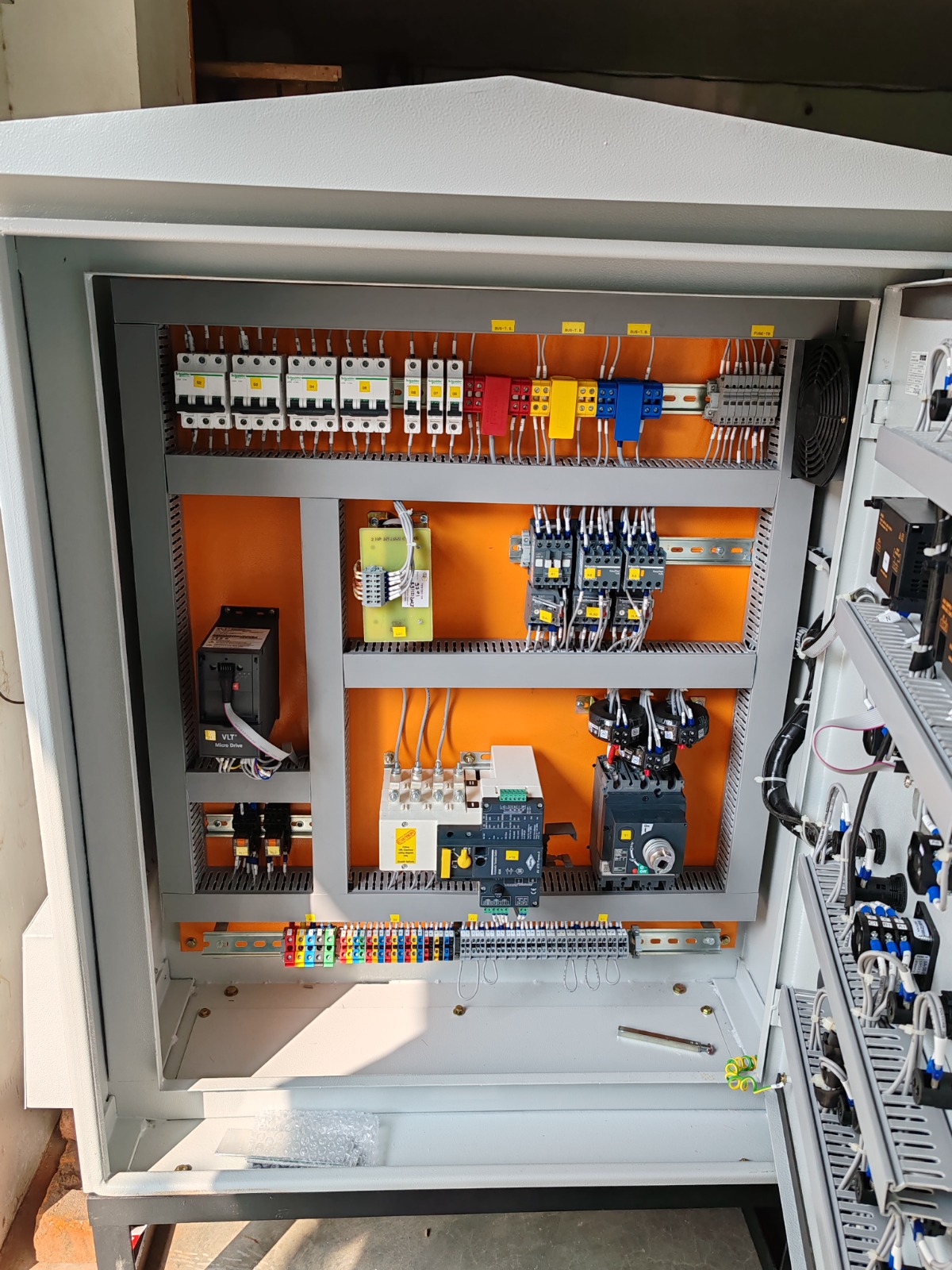

Typical Components In An HVAC Panel
| Component | Function |
|---|---|
| MCB/MCCB | Protection And Isolation |
| Contactors & Overload Relays | Start/stop Motors And Protect Against Overload |
| VFD (Variable Frequency Drive) | Speed Control For Motors (fans, Pumps, Compressors) |
| PLC Or DDC Controller | Automation Logic Controller For Sequence And Timing |
| Temperature/Humidity Sensors | Feedback Input For Controlling Environment |
| HMI/Touchscreen | Operator Interface For Monitoring And Settings |
| Relays & Timers | Logic And Sequence Operations |
| Alarm Indicators | Display Faults Like Over-temp, Over-current, Phase Loss |
